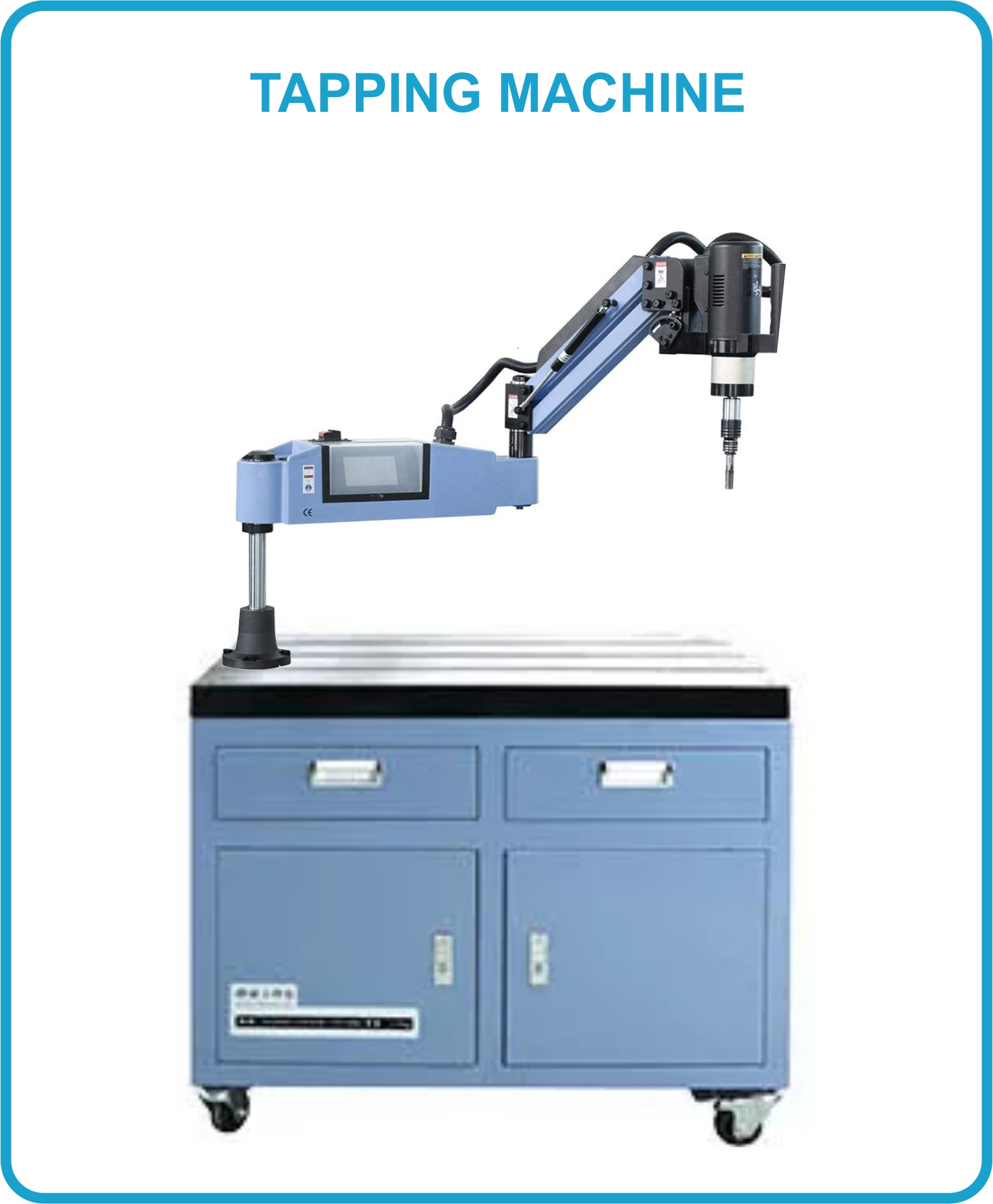

Tapping Machine
Tapping Machine
Tapping Machine
Specifications
|
Specification |
Unit |
M3-M12 |
M3-M16 |
M6-M24 |
M6-M30 |
M6-M36 |
M6-M48 |
|---|---|---|---|---|---|---|---|
|
Working Table |
mm |
900x600x700 |
|||||
|
Tap Capicity |
mm |
3 to 12 |
3 to 16 |
6 to 24 |
6 to 30 |
6 to 36 |
6 to 48 |
|
Motor |
|
Servo |
|
|
|
|
|
|
Motor Power |
W |
600 |
600 |
1200 |
1200 |
1200 |
1200 |
|
Motor Speed |
rpm/m |
1000 |
375 |
200 |
200 |
125 |
50-250 |
|
Input Power |
V |
220V Single Phase 50Hz |
|||||
|
Weight |
Kg |
32 |
32 |
49 |
49 |
67 |
125 |
|
Machine Dimension |
mm |
700x660x220 |
700x660x220 |
810x770x220 |
810x770x220 |
810x770x220 |
1200x1020x240 |
